Material AISI 316
1 X 19 strand
stiffest

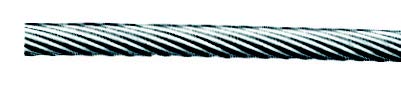

Material AISI 316
1 X 37 | 1 X 61 strand
stiff

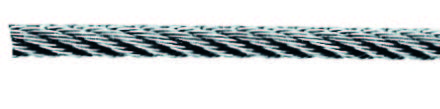

Material AISI 316
7 X 7 construction
flexibel

Material AISI 316
7 X 19 construction
most flexibel

Swaged external thread
F50 hammered for 4mm to 8mm rope.
Thread length = 30mm or 60mm.

Swaged external thread
F30 hammered for 3mm to 10mm rope. Thread length varies.

Swaged external thread
end for rope up to 16mm.
Thread length varies.

Roll swaged external thread
end for rope up to 26mm.
Thread length varies.

Field installed external thread end fitting for wire rope up to 12mm.

Swaged external swivel thread
end for 3mm to 6mm rope.

Turnbuckle with thread swaged
for 2mm to 16mm rope.

Turnbuckle with thread hammered
for 4mm to 10mm rope.

For runs over 50'. Available for
4mm to 6mm rope.

For runs over 50'. Available for
5mm, 6mm  or 8mm rope.

Turnbuckle with two swaged external thread ends for rope up to 12mm.

Turnbuckle with two F30 hammered
swaged external thread ends.

Swageless turnbuckle
for 4mm to 12mm rope.

Short swageless turnbuckle
6mm to 12mm rope.

Rope with both sides
external thread ends swaged.

Rope with both sides turnbuckle with external thread F30 hammered.

Rope with both sides turnbuckle
with external thread swaged.

Rope with both sides
external thread F30 hammered.

Rope with both sides
external thread F50 hammered.

Swaged internal thread end fitting
for 6mm to 30mm rope.

Swaged internal thread swivel for 3mm to 6mm rope.

Rope with both sides
internal thread swaged.

Swaged end fitting with internal thread for 2mm to 6mm rope.

Field installed internal thread end fitting for 2mm to 12mm rope.

For 2mm to 16mm rope.

For 4mm to 6mm rope.

For 6mm to 26mm rope.

For 3mm to 16mm rope.

Fork with RH or LH external thread.

With RH or LH internal thread.

For 4mm to 8mm rope.

For 4mm to 10mm rope.

For 4mm to 8mm rope.

For 6mm to 26mm rope.

With RH or LH external thread.

For 4mm to 8mm rope.

For 2mm to 16mm rope.

Turnbuckle with two forks.

With RH or LH internal thread.

Rope with both sides fork with internal thread swaged.

Rope with both sides CS-fork with internal thread swaged.

Rope with one side turnbuckle with fork and other side with fork swaged.

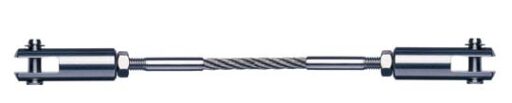

Rope with both sides
turnbuckle with fork swaged.

Rope with both sides external thread F30 complete with fork with internal thread.

Rope with both sides external thread F30 complete with CS-fork with internal thread.

Rope with both sides
turnbuckle with fork fitting.

Rope with one side turnbuckle with fork and other side swaged fork.

Rope with both sides
with fork fitting rolled.

Swaged eye for 2mm to 16mm rope.

RH or LH for 3mm to 16mm rope.

For 4mm to 6mm rope.

RH or LH for 4mm to 8mm rope.

With RH or LH external thread.

With 48mm long M8 thread.

With RH or LH external thread. Compatible with CS-Fork.

With RH or LH internal thread. Compatible with CS-Fork.

For 2mm to 12mm rope.

For 4mm to 10mm rope.

Eye with RH or LH internal thread.

With RH or LH external thread.

RH or LH eye bolt.

Rope with both sides
eye with internal thread swaged.

Rope with both sides CS-eye with internal thread swaged.

Rope with one side turnbuckle with eye and other side eye swaged.

Rope with both sides
turnbuckle with eye swaged.

Swaged end stop with radius head
for 2mm to 8mm rope.

Swaged end stop countersunk 90°
for 2mm to 8mm rope.

Swaged end stop with radius head
round for 2mm to 8mm rope.

Swaged end stop
for 2mm to 8mm rope.

End stop countersunk  90°
round swaged for 2mm to 8mm rope.

Ball head with hammered external thread for 3mm to 5mm rope.

Radius head with hammered external thread for 4mm to 6mm rope.

Countersunk head with hammered external thread for 4mm to 6mm rope.

Countersunk stop with internal
thread M4, M5, M6 or M8.

Radius head end stop
with RH internal thread.

Ball head with internal thread
M4, M5 or M6.

Pivot head for ball head
for flat profile.

Pivot head for ball head
for round profile.

Rope with both sides external thread F30 and swageless on radius end stop.

Rope with both sides
external thread F30 and swageless
on countersunk end stop.

Rope with both sides external thread F30 and swageless on ball head.

Rope with one side external thread swaged, other side radius head end stop swaged.

Rope with one side external thread swaged, other side countersunk head end stop swaged.

Swaged loop for rope
2mm to 16mm.

Swaged loop with thimble
for rope 2mm to 16mm.

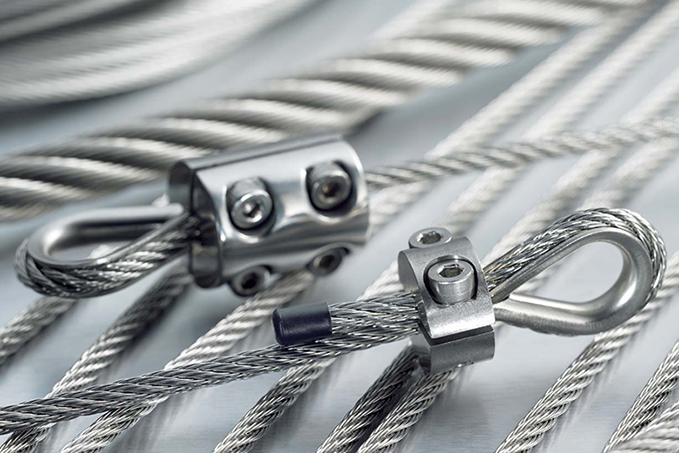

Light clamp ring with thimble
for rope up to 4mm.

Loop clamp ring with thimble
for rope up to 8mm.

90° non-adjustable cross clamp
 for 3mm to 6mm wire rope.

Cross clamp for
3mm to 6mm rope.

Adjustable cross clamp
for 3mm to 6mm wire rope.

Adjustable cross clamp with
internal thread for 3mm to 6mm rope.

Light clamp ring for
2mm to 10mm rope.

Two part clamp ring for
3mm to 8mm rope.

Light clamp ring with adapter for 2mm to 8mm rope.

Grip, heavy TYP for rope
2mm to 16mm.

Stainless steel holder
for rod or rope.

Rope guide with fork head for
8mm to 12mm rope.

Pulley block for 6mm
or 8mm rope.

Adjustable screw on
cross clamp.

Screw on cross clamp for
6mm to 16mm rope.

Adjustable cross clamp for
4mm to 12mm rope.

Thimble for wire rope
2mm to 16mm.

Angle stand off
washer.

Angle standoff washer with flat profile for external thread M4 to M16.

Angle standoff washer with round profile for external thread M4 to M16.

Angle washer for countersunk end stop 90°, flat profile.

Angle washer for countersunk end stop 90°, round profile.

Shackle D-Form.

Bow Shackle.

Available with thread M6 to M24.

Available with thread M6 to M24.

Washer for M4 to M36.

With LH or RH thread M4 to M36.

Lock nut with nylon insert. Available with M4 to M20 thread.

Dome nut with M4 to M20 thread.

Available with M6 to M14 thread.

Socket head screw M4 to M12.

Pan head screw M5 to M8.

Left/right turnbuckle available with M5 to M24 thread.

Left/right cylindrical turnbuckle. Available with M5 to M8 thread.

Available with M4 to M20 thread.

With RH or LH thread.

With RH or LH thread M5 to M12.

Available with M6 to M12
internal thread.

Wall anchor with M6 to M12 thread.

With RH or LH internal thread.

For 2mm to 10mm rope.

Fork Bracket.

Blue galvanized steel Rampa
screw for wood.

Loose sleeve for 3mm to 10mm rope.

Thread sleeve available for M6 to M16.

Ball for internal thread radius head.

Ball end with RH or LH internal thread M4 to M10.
